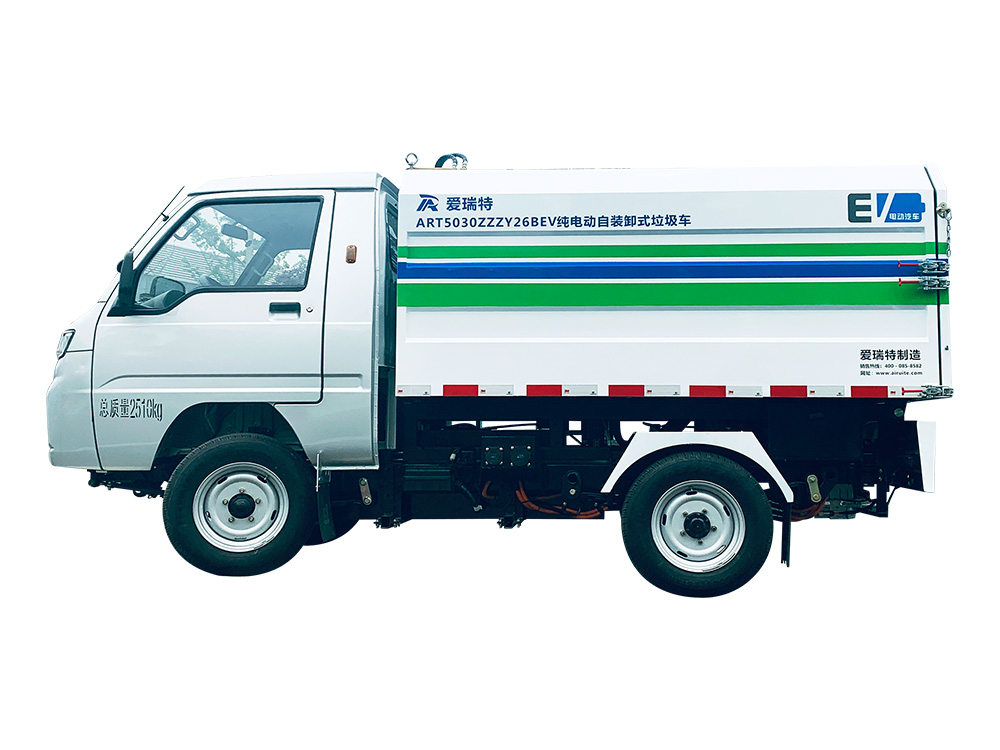

ART5030ZZZY26BEV Pure electric garbage truck is mainly used for classified collection and transportation of barreled garbage in property communities, towns, commercial areas, scenic spots, schools and other places. The box has good sealing, pure electric operation, low use cost and zero emission.
◆ box body: it is made of high-quality high-strength steel plate, matched with 304 stainless steel bottom plate, electrophoretic painting treatment, durable and corrosion-resistant;

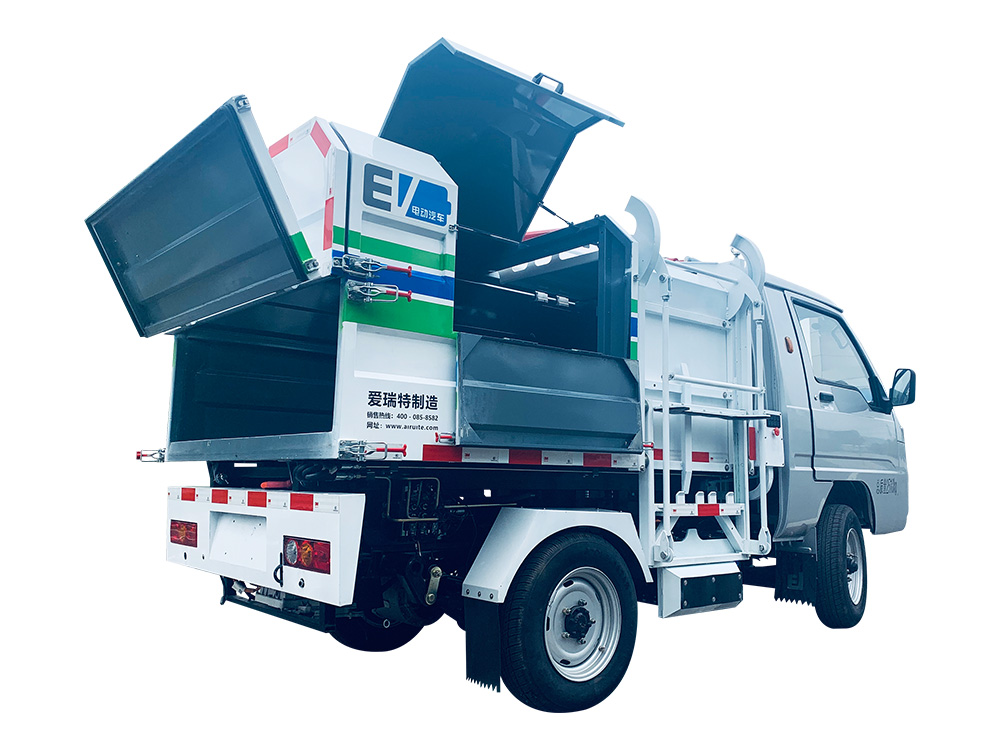

◆ feeding system: side bucket turning mechanism for feeding;
◆ push plate device: horizontal compression push plate is built in the box, which can improve the loading capacity of the box;
◆ unloading system: back tipping high-level tipping unloading;
◆ hydraulic system: 300vsvc sensorless permanent magnet synchronous motor, 12L oil tank, jhg-ddb020 gear pump, stable operation, no external leakage, reliable and efficient hydraulic system.
| Parameters | ART5030ZZZY26BEV Pure electric garbage truck |
| Chassis model / brand | DLP1030BEVT01/De Shuai brand |
| Total mass | 2510kg |
| Curb weight | 1780kg |
| Wheelbase | 2000mm |
| Battery brand | Boat voyage (lithium iron phosphate) |
| Battery capacity | 41.16kWh |
| Range | 270km(Working condition method) |
| Maximum speed | 90km/h |
| Gradient | ≥20% |
| Turning radius | ≤5m |
| Bin volume | 3.1m3 |
| Feeding cycle time | ≤20s |
| Unloading cycle time | ≤30s |
| Overall dimension (L × W × H) | 3950×1630×2000mm |
| Car body size (L × W × H) | 2998×1447×1017mm |
